Store Large Files by Using GridFS

Overview

In this guide, you can learn how to store and retrieve large files in MongoDB by using GridFS. GridFS is a specification that describes how to split files into chunks when storing them and reassemble those files when retrieving them. The Ruby driver's implementation of GridFS is an abstraction that manages the operations and organization of the file storage.

Use GridFS if the size of your files exceeds the BSON document size limit of 16MB. For more detailed information on whether GridFS is suitable for your use case, see GridFS in the MongoDB Server manual.

The following sections describe GridFS operations and how to perform them.

How GridFS Works

GridFS organizes files in a bucket, a group of MongoDB collections that contain the chunks of files and information describing them. The bucket contains the following collections, named using the convention defined in the GridFS specification:

• The chunks collection stores the binary file chunks.

• The files collection stores the file metadata.

When you create a new GridFS bucket, the driver creates the fs.chunks and fs.files collections, unless you specify a different name in the Mongo::Database#fs method options. The driver also creates an index on each collection to ensure efficient retrieval of the files and related metadata. The driver creates the GridFS bucket, if it doesn't exist, only when the first write operation is performed. The driver creates indexes only if they don't exist and when the bucket is empty. For more information about GridFS indexes, see GridFS Indexes in the MongoDB Server manual.

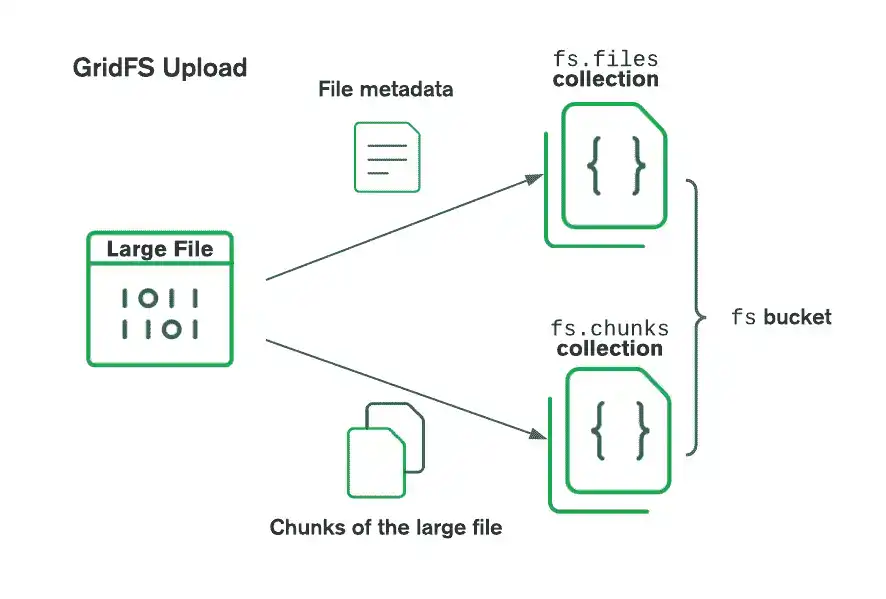

When storing files with GridFS, the driver splits the files into smaller chunks, each represented by a separate document in the chunks collection. It also creates a document in the files collection that contains a file ID, file name, and other file metadata. You can upload the file from memory or from a stream. The following diagram shows how GridFS splits the files when they're uploaded to a bucket.

When retrieving files, GridFS fetches the metadata from the files collection in the specified bucket and uses the information to reconstruct the file from documents in the chunks collection. You can read the file into memory or output it to a stream.

Create a GridFS Bucket

To store or retrieve files from GridFS, create a GridFS bucket by calling the fs method on a Mongo::Database instance. You can use the FSBucket instance to perform read and write operations on the files in your bucket.

bucket = database.fs

To create or reference a bucket with a name other than the default name fs, pass the bucket name as an optional parameter to the fs method, as shown in the following example:

custom_bucket = database.fs(database, bucket_name: 'files')

Upload Files

The upload_from_stream method reads the contents of an upload stream and saves it to the GridFSBucket instance.

You can pass a Hash as an optional parameter to configure the chunk size or include additional metadata.

The following example uploads a file into FSBucket and specifies metadata for the uploaded file:

metadata = { uploaded_by: 'username' }
File.open('/path/to/file', 'rb') do |file|
  file_id = bucket.upload_from_stream('test.txt', file, metadata: metadata)
  puts "Uploaded file with ID: #{file_id}"
end

Retrieve File Information

In this section, you can learn how to retrieve file metadata stored in the files collection of the GridFS bucket. The metadata contains information about the file it refers to, including:

• The _id of the file

• The name of the file

• The size of the file

• The upload date and time

• A metadata document in which you can store any other information

To learn more about fields you can retrieve from the files collection, see the GridFS Files Collection documentation in the MongoDB Server manual.

To retrieve files from a GridFS bucket, call the find method on the FSBucket instance. The following code example retrieves and prints file metadata from all files in a GridFS bucket:

bucket.find.each do |file|
  puts "Filename: #{file.filename}"
end

To learn more about querying MongoDB, see Retrieve Data.

Download Files

The download_to_stream method downloads the contents of a file.

To download a file by its file _id, pass the _id to the method. The download_to_stream method writes the contents of the file to the provided object. The following example downloads a file by its file _id:

file_id = BSON::ObjectId('your_file_id')
File.open('/path/to/downloaded_file', 'wb') do |file|
  bucket.download_to_stream(file_id, file)
end

If you a file's name but not its _id, you can use the download_to_stream_by_name method. The following example downloads a file named mongodb-tutorial:

File.open('/path/to/downloaded_file', 'wb') do |file|
  bucket.download_to_stream_by_name('mongodb-tutorial', file)
end

Delete Files

Use the delete method to remove a file's collection document and associated chunks from your bucket. You must specify the file by its _id field rather than its file name.

The following example deletes a file by its _id:

file_id = BSON::ObjectId('your_file_id')
bucket.delete(file_id)

API Documentation

To learn more about using GridFS to store and retrieve large files, see the following API documentation:

• Mongo::Grid::FSBucket
